Broadcast Studios case study
A worn Burbank stage received refreshed cycs, repaired acoustic treatment, safer overhead conditions, and modern wired and wireless production connectivity.
01 / Project brief

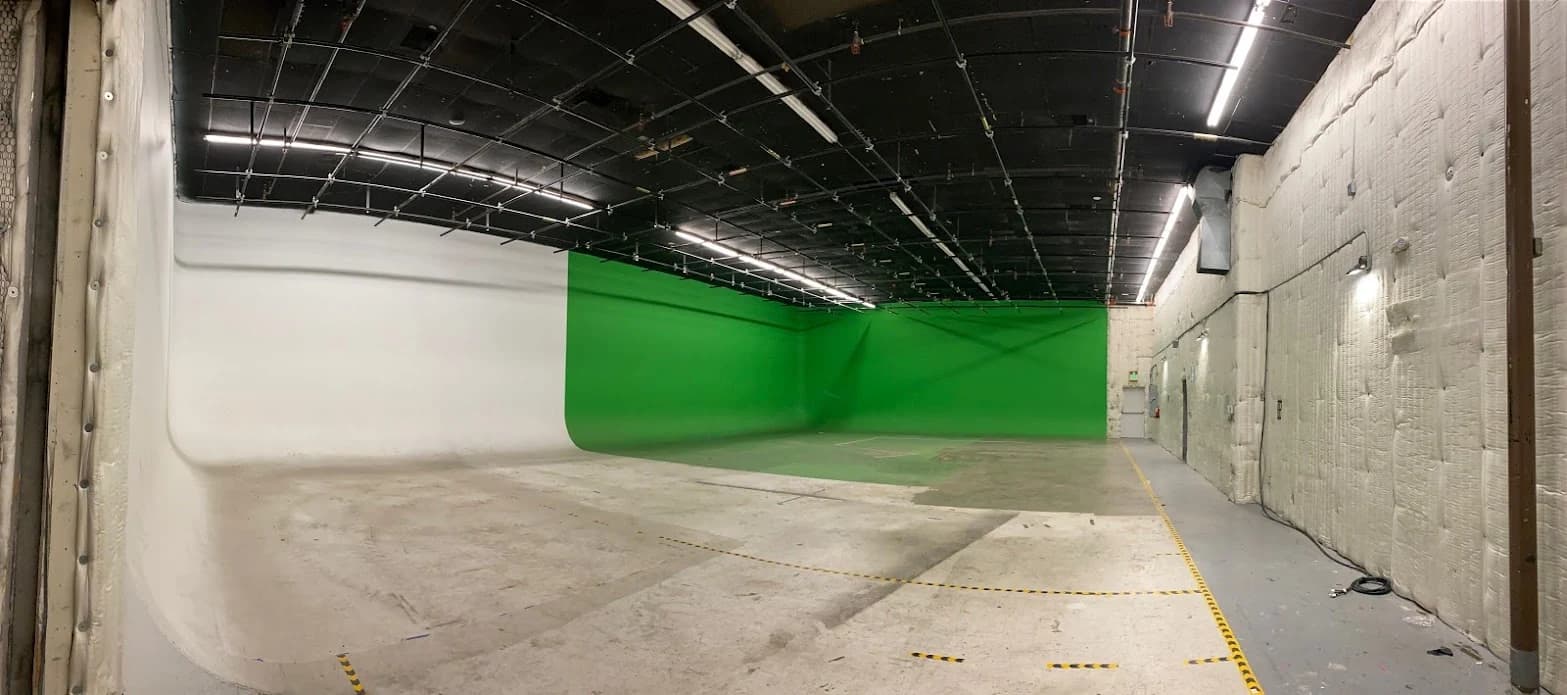

Two existing cycs were worn, tape and adhesive covered parts of the floor, InsulQuilt required repair, acoustic ceiling tiles were damaged, and selected Speed Rail needed removal.
The stage also needed Cat6a connectivity, stronger wireless coverage, and an updated bell-and-light system for modern live-streaming and stage operations. Upper walls, ceiling, and grid work required safe elevated access.
JAZ documented the stage, removed floor residue, and prepared both cycs for professional refinishing, one in chroma green and one in white. InsulQuilt was repositioned and repaired, loose ceiling tiles were replaced, and selected Speed Rail was removed.
Multiple Cat6a runs, overhead Cisco Meraki access points, and bell-and-light improvements modernized the technical infrastructure. Scissor lifts provided safe access to elevated work areas.
02 / Execution
Cleaned and prepared the stage surfaces.
Refinished one white cyc and one chroma-green cyc.
Repaired acoustic treatment, ceiling tiles, and overhead infrastructure.
Installed Cat6a, Meraki wireless access points, and stage communication upgrades.
03 / Outcome

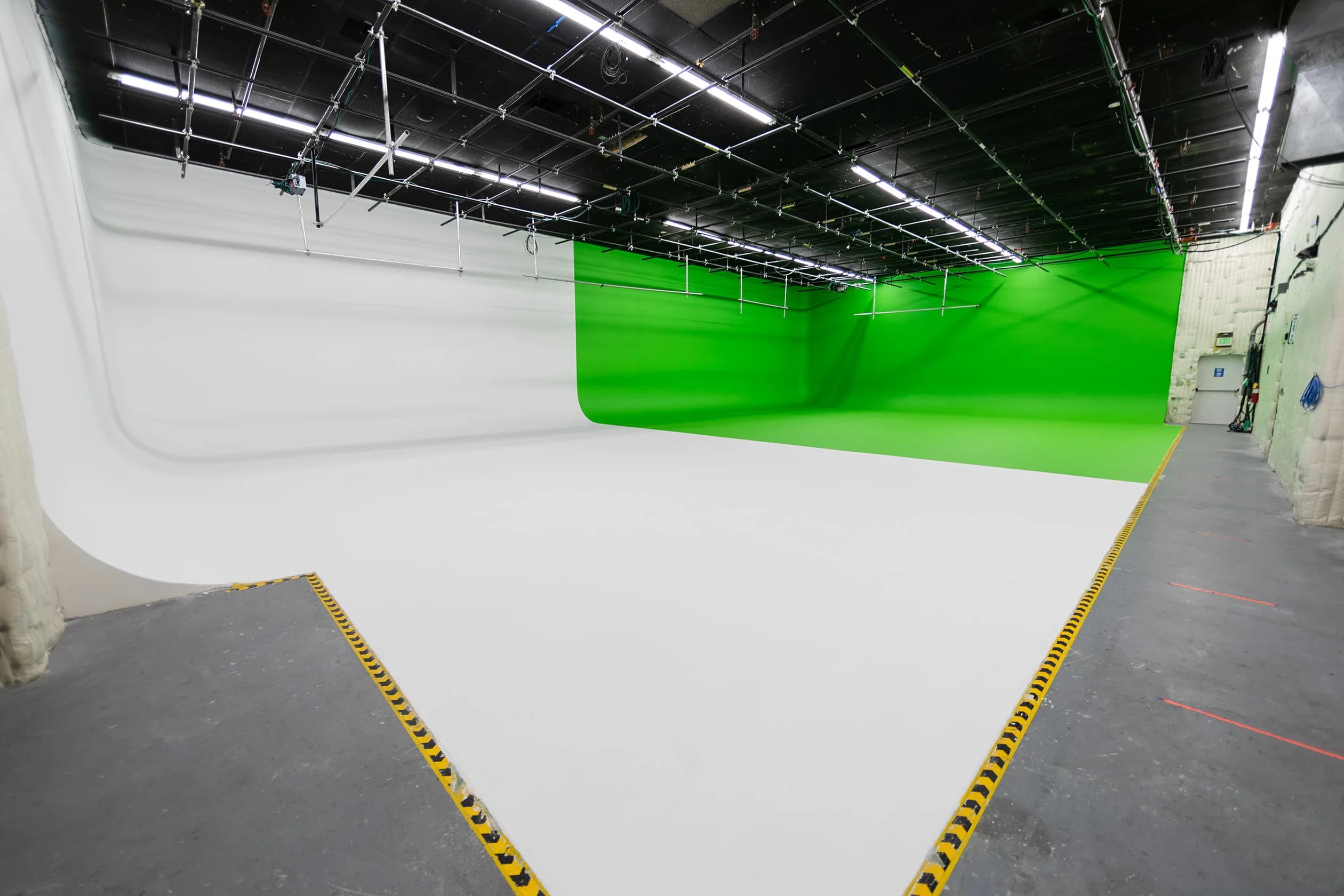

Cleaner white and green capture areas.
